SOLAX BMS Parallel Box G2
Solax

SOLAX BMS Parallel Box

The SOLAX BMS Parallel Box is designed for optimal use with X1 and X3 Hybrid Inverters, allowing you to double the storage capacity with T30 and T58 batteries. It serves as a replacement for the Master Battery. When retrofitting the Parallel Box to an existing system, the Master Battery becomes redundant and cannot be used alongside it.

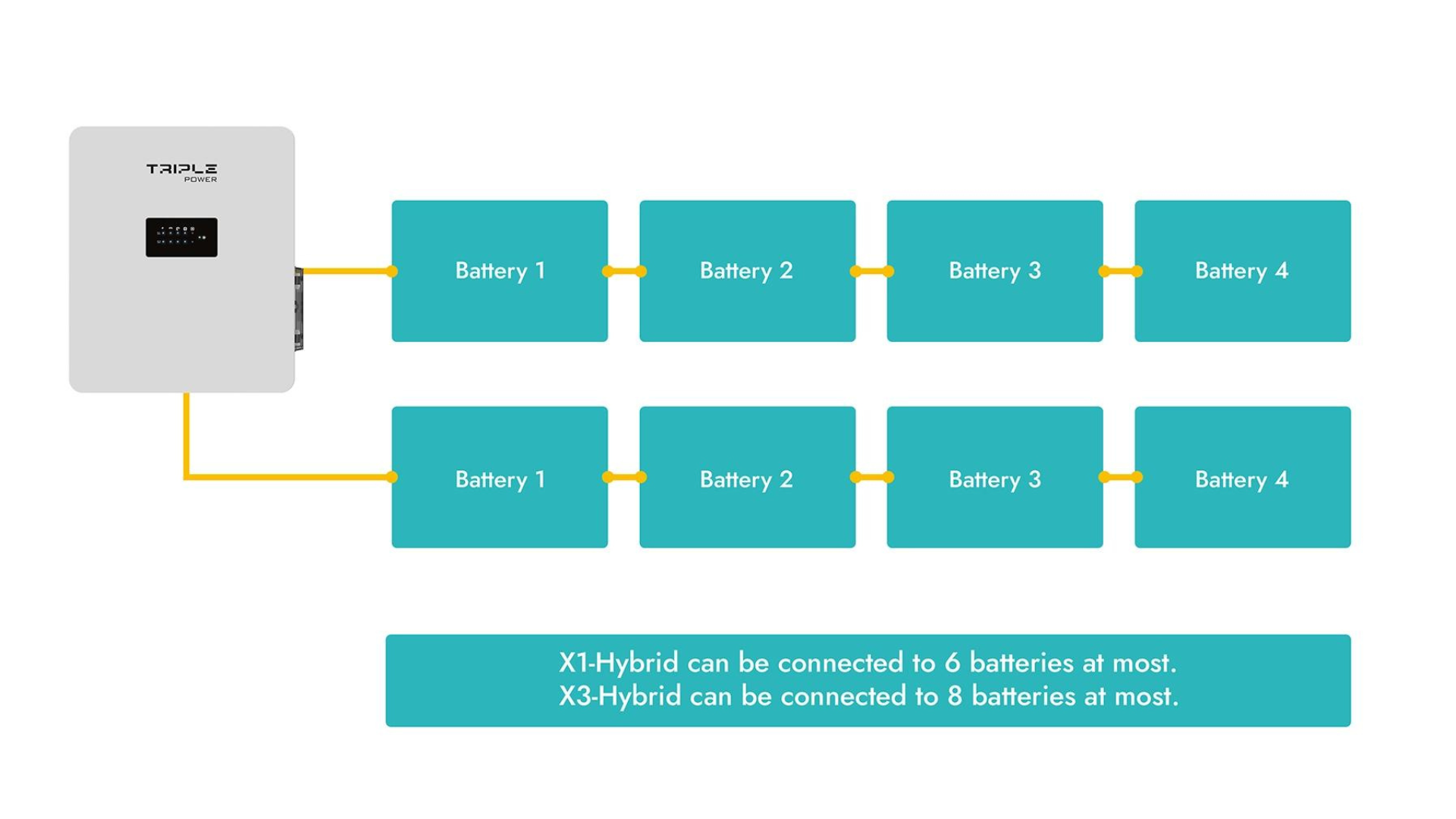

Compatibility and Configurations:

For T58 Batteries:

• X1 Single Phase: Supports 2, 4, or 6 Triple Power 5.8kWh batteries. (Requires a Master Battery)
• X3 Three Phase: Supports 4, 6, or 8 Triple Power 5.8kWh batteries. (Requires a Master Battery)

For T30 Batteries:

• X1 Single Phase: Supports 2, 4, or 6 Triple Power 3.0kWh batteries. (Requires the BMS Parallel Box)
• X3 Three Phase: Supports 4, 6, or 8 Triple Power 3.0kWh batteries. (Requires the BMS Parallel Box)

This setup enhances the flexibility and scalability of your energy storage system, making it easier to expand capacity as needed.
