SolaX Power Triple Power 5.8kWh RANGE MASTER & SLAVE 0PTIONS
Solax

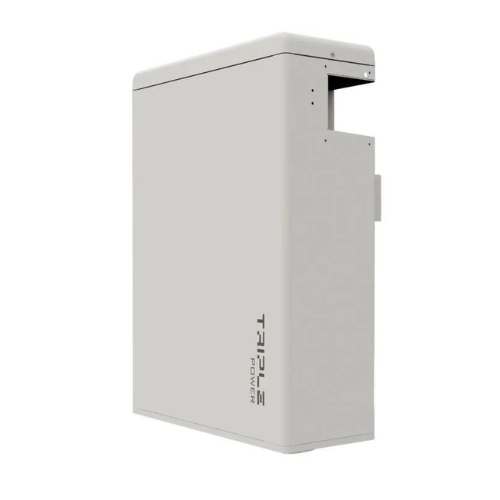

The SolaX Power Triple Power 5.8kWh SLAVE battery is a high-voltage energy storage solution designed to enhance existing SolaX systems. Here are the key points and features:
Compatibility and Usage:
Expansion Only: This battery module is intended solely for expanding systems already utilizing the 5.8kWh model.
System Integration: Can be used with SolaX HV hybrid inverters and AC chargers.
Installation Capabilities:
Slave Battery Configuration:
Up to 3 slave batteries can be added to a system with a master battery, contingent on the specific inverter or AC charger used. It's advisable to check compatibility with your system.
With the Triple Power BMS Parallel Box, up to 8 slave batteries can be installed.
Battery Features:
Scalability:
Scalable to a maximum of 46.4kWh when utilizing the BMS Parallel Box, allowing for significant energy storage expansion.
Mounting Options:
Can be floor or wall-mounted to suit various installation preferences and space constraints.
Efficiency:
High voltage design reduces the need for thicker cables.
Compact and efficient, facilitating easier installation.
90% Depth of Discharge (DoD), optimizing the usable energy capacity.
Long lifespan with up to 6000 life cycles.
Installation and Maintenance:
Ease of Installation:
Designed for a straightforward installation process with a plug-and-play setup, including all necessary cables.
Important Considerations:
Battery Module Only: This product is the battery module alone, intended for expanding an existing system.
Technical Support: For detailed compatibility and installation inquiries, contacting technical support is recommended.
This SolaX Power Triple Power 5.8kWh SLAVE battery provides a robust and scalable solution for expanding your energy storage capacity, ensuring compatibility and efficiency with your existing SolaX high-voltage system.
Book a Call
Request a call and we'll contact you within 24 hours.
SolaX Power Triple Power 5.8kWh RANGE MASTER & SLAVE 0PTIONS
Send this to a friend
SolaX Power Triple Power 5.8kWh RANGE MASTER & SLAVE 0PTIONS
- INSTALLATION EXPLAINED
An SGC engineer will visit your property and complete a full survey, including the solar array and inverter if you have one, and make installation recommendations prior to the installation team arriving, so that everyone has a clear understanding of what the installation plan is. All of our installations are fitted to the latest revisions of MCS Battery Fitting Standards and all work is guaranteed with a certificated, insurance backed, warranty issued by the MCS. This ensures that in the unlikely event we went out of business you are fully covered for the work carried out.
On-site Survey it may not be necessary to carry out a site visit, as we can assess compatibility remotely if it’s a standard installation. however we will require a complete overview about available space and the location of your consumer electrical unit via clear photographic proof
Number of Installers : Typically, Teams of two, Electrician and an assistant is sent to fit your new battery storage system. Our Lead Electrician responsible for ensuring the timely and high-standard completion of your installation and can answer any questions you may have at the time.
Duration of Installation: Unlike solar PV system installations, which may take 1-2 days, battery installation is relatively simple and can be completed in a few hours.
Preparation on Your End: You need to ensure that the installation area is accessible and clutter-free. Provide Our Electrician with access to the necessary spaces inside and outside your home or building, as well as to electricity supply, water, and a toilet if needed. Minimal disruption is promised and a tidy up before leaving.
You will also need to share your WiFi access password if you want the installer to set up system monitoring on the day.
Full Standard Installation: Installation included within our fixed price promise is your new New Energy Storage system will be installed to the latest revision of the MCS battery fitting Standards
Battery Upgrade included within our price ( Adding additional capacity to an already installed system)
- Install new battery
- recommission system
- Test system
Full installation will include
- Isolation
- Fire detection if fitted inside (Not required outside)
- Fuse board accessories, sub boards/ electrical control gear
- Meter
- In-home Monitoring via WiFi & Battery System App
- 5 year workmanship warranty
- Certification MCS and Electrical Installation Certificate
- USB with all warranty and maintenance schedules
Your battery will be capable of the following
- Store excess energy above your base load produced by your solar panels if fitted
- Facility to set a charge cycle to charge Batteries via the Grid ( ideally during off peak times to take advantage of off peak rate if available)
- Discharge/ Charge as per the current set out in the product datasheets
Non Standard Installations:
Optional upgrades not included as standard
EPS short for Emergency Power Supply, denotes the capability of a Solar PV System to seamlessly switch to powering essential circuits either automatically or manually using the battery storage system in the event of a power outage. The latest Hybrid solar inverters represent the next evolution in this technology, specifically engineered to offer EPS functionality. This feature aims to grant customers peace of mind by ensuring a continuous power supply during instances of power failure it does however this does require a bespoke installation at an extra cost please call 0333-222-5013 or talk with our surveyor during your site survey
There are loads of different configuration options but we recommend the following below
EPS ( Emergency Power Supply)
Upgrades available
- Rcd (Double Safety Socket) double socket located at the inverter IP rated for outside use ( Most economical option in most cases less than £150.00)
EPS (Emergency Power Supply ) full or part control (Bespoke Quote needed )
- Selected circuits or full board control
- Auto transfer switch with relay
- Install Earth Rod
- Adjustments to the current wiring infrastructure
- Full test of house
After Installation: Once the installation is complete and the final balance is paid, We will provides a handover pack. This pack includes key information about your installed battery storage system and product warranties receipt invoices etc .
- ORDERING, PAYMENTS & DEPOSITS
Ordering – Payments - Deposits
Normally, we will have carried out a survey, recommended a system that suits your requirements and either agreed the details with you or left you to finalise your decisions.
If you are confident that you know exactly what products you want, then you can place an order on our website by adding your items to your ‘basket’ and checking out your purchase when you’re done. Our system will prompt you to open an account so that we have all of the details necessary to provide your order, invoice, receipt, product certificates and warranties and of course to arrange delivery and installation.
You have the option of paying in full or paying a 30% deposit to activate your order, with the balance due once your installation is completed to your satisfaction. Payments can be made using debit or credit cards or, off-line, by bank transfer (which is quicker and cheaper for us but please use whichever method suits you best).
Alternatively, if you need some help or advice, please call us (0333 222 5013) and we will gladly walk through the whole process with you.
